Extract Synthesis Parameters

This example demonstrates how to analyze the structure of a crosslinked polymer network to get the stoichiometric imbalance \(r\), the crosslinker conversion \(p\) or the functionality of the crosslinker \(f\).

Stoichiometric imbalance (r): 1.16
Crosslinker conversion (p): 0.7241379310344828
Functionality of the crosslinker (f): 4

import os
from pathlib import Path
from collections import Counter

import matplotlib.pyplot as plt

from pylimer_tools.analyse_networks import (
    compute_crosslinker_conversion,
    compute_stoichiometric_imbalance,
)
from pylimer_tools.io.read_lammps_output_file import read_data_file
from pylimer_tools_cpp import Universe

# Replace with your crosslinker type
crosslinker_type = 2


# Load your network (replace path accordingly)
def _find_fixtures_dir() -> Path:
    for cur in (
        [Path(__file__).resolve().parent] if "__file__" in globals() else []
    ) + [Path.cwd()]:
        for p in [cur] + list(cur.parents):
            candidate = p / "tests" / "pylimer_tools" / "fixtures"
            if candidate.is_dir():
                return candidate
    return Path("tests/pylimer_tools/fixtures").resolve()


_fixtures_dir = _find_fixtures_dir()
universe = read_data_file(
    str(_fixtures_dir / "structure/network_100_a_46.structure.out")
)
assert isinstance(universe, Universe)

# 1. Compute stoichiometric imbalance
r = compute_stoichiometric_imbalance(universe, crosslinker_type)
print(f"Stoichiometric imbalance (r): {r}")

# 2. Compute crosslinker conversion
p = compute_crosslinker_conversion(universe, crosslinker_type)
print(f"Crosslinker conversion (p): {p}")

# 3. Compute functionality of the crosslinker
f = universe.determine_functionality_per_type()[crosslinker_type]
print(f"Functionality of the crosslinker (f): {f}")

# Count functionalities
crosslinkers = universe.get_atoms_by_type(crosslinker_type)
functionalities = universe.get_vertex_degrees()
functionalities = [
    functionalities[universe.get_vertex_idx_by_atom_id(a.get_id())]
    for a in crosslinkers
]
functionality_counts = Counter(functionalities)

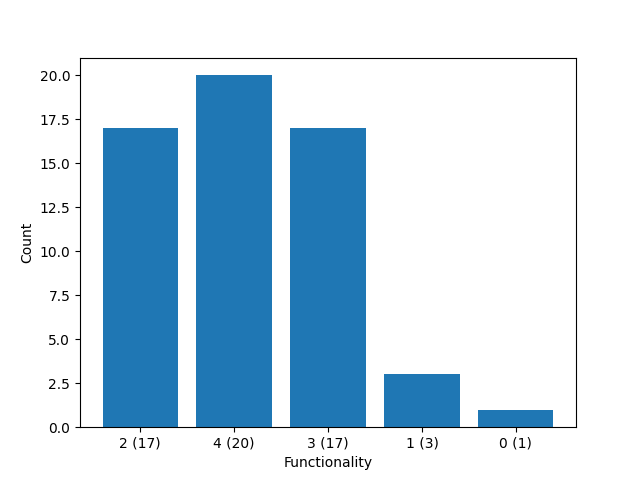

# Plot the functionality counts
plt.figure()
plt.bar(
    [f"{k} ({v})" for k, v in functionality_counts.items()],
    list(functionality_counts.values()),
)
plt.xlabel("Functionality")
plt.ylabel("Count")
plt.show()
