Generate a Polydisperse Polymer Network

This example demonstrates how to use the MCUniverseGenerator to create a polydisperse end-linked polymer network with varying strand lengths.

For strand length distribution, in this example, we show how to use the log-normal distribution as proposed by Tsimouri et al. [TCG21]. Alternatives were proposed as well, such as the inverse Gaussian or a ternary distribution.

import math
import random

import matplotlib.pyplot as plt

from pylimer_tools.io.bead_spring_parameter_provider import (
    ParameterType,
    get_parameters_for_polymer,
)
from pylimer_tools_cpp import MCUniverseGenerator

# Get parameters for PDMS polymer density and bead distance
params = get_parameters_for_polymer(
    "PDMS", parameter_type=ParameterType.GAUSSIAN)

# setup strand lengths
n_strands = 1000

average_length = 50
polydispersity = 1.25

# Calculate parameters for log-normal distribution
s = math.sqrt(math.log(polydispersity))
m = math.log(average_length) - 0.5 * s**2

# sample strand lengths from log-normal distribution
strand_lengths = [int(random.lognormvariate(m, s)) for _ in range(n_strands)]

n_atoms_total = sum(strand_lengths) + 0.5 * n_strands  # add crosslinker sites
volume = params.get_bead_density() * n_atoms_total

generator = MCUniverseGenerator(
    volume ** (1 / 3),
    volume ** (1 / 3),
    volume ** (1 / 3),
)

generator.set_bead_distance(
    params.get("<b>").to(params.get("distance_units")).magnitude
)
generator.add_strands(nr_of_strands=n_strands, strand_lengths=strand_lengths)
# 4-functional crosslinkers
generator.add_crosslinkers(
    int(0.5 * n_strands), crosslinker_functionality=4, crosslinker_type=2
)
generator.link_strands_to_conversion(
    crosslinker_conversion=0.925,  # 92.5% of crosslinker sites used
)

universe = generator.get_universe()
universe.set_masses({1: 1.0, 2: 1.0})  # Set masses for LAMMPS

assert math.isclose(
    universe.compute_polydispersity_index(2),
    polydispersity,
    rel_tol=0.1,
)

Refer to File I/O: Readers & Writers for how you can save the universe to a file.

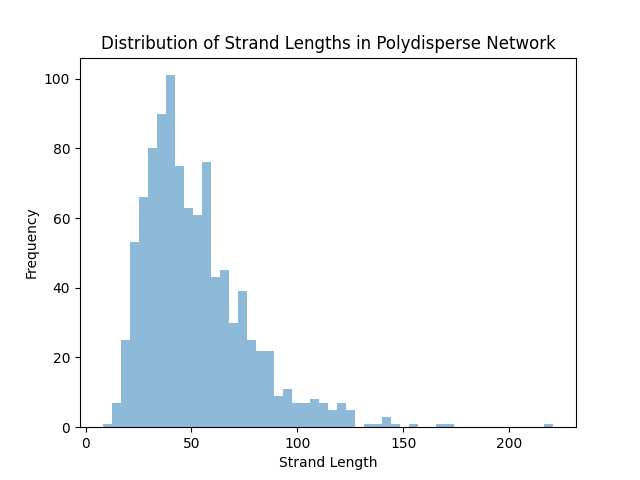

For now, we will show that this produces a variety of different strand lengths:

strand_lengths = [m.get_nr_of_atoms()
                  for m in universe.get_chains_with_crosslinker(2)]

# Plot the distribution of strand lengths
plt.figure()
plt.hist(strand_lengths, bins=50, alpha=0.5, label="Strand Lengths")
plt.xlabel("Strand Length")
plt.ylabel("Frequency")
plt.title("Distribution of Strand Lengths in Polydisperse Network")
plt.show()
