Generate Vulcanized Networks

In this example, we create a vulcanized network using the pylimer-tools library.

import os
import matplotlib.pyplot as plt
import numpy as np
from scipy.stats import chisquare, kstest

from pylimer_tools.io.bead_spring_parameter_provider import (
    ParameterType,
    get_parameters_for_polymer,
)
from pylimer_tools_cpp import (
    DataFileWriter,
    MCUniverseGenerator,
    randomly_sample_entanglements,
)

# Get parameters for PDMS polymer density and bead distance
params = get_parameters_for_polymer(
    "PDMS", parameter_type=ParameterType.GAUSSIAN)

n_strands = 10000
n_atoms_per_strand = 50

# Determine the required volume for this many strands
# and this type of polymer
volume = params.get_bead_density() * n_strands * n_atoms_per_strand

# Create generator for simulation box corresponding to the volume
generator = MCUniverseGenerator(
    volume ** (1 / 3),
    volume ** (1 / 3),
    volume ** (1 / 3),
)

# Set random seed for reproducibility
generator.set_seed(12345)

# Set mean bead-to-bead distance
generator.set_mean_squared_bead_distance(
    params.get("<b^2>").to(params.get("distance_units") ** 2).magnitude
)

# Add strands
generator.add_strands(
    nr_of_strands=n_strands,  # 10000 polymer chains
    strand_lengths=[
        n_atoms_per_strand for _ in range(n_strands)
    ],  # 100 beads per chain
)

# At this point, the universe is still a melt
universe = generator.get_universe()

# Sample vulcanization "crosslinks"
sampled_crosslinks = randomly_sample_entanglements(
    universe, nr_of_samples=int(0.75 * n_strands), upper_cutoff=2.5, seed="12345"
)
n_sampled_crosslinks = len(sampled_crosslinks.pairs_of_atoms)

# Add sampled crosslinks to the universe
universe.add_bonds(
    n_sampled_crosslinks,
    [sampled_crosslinks.pairs_of_atoms[i][0]
        for i in range(n_sampled_crosslinks)],
    [sampled_crosslinks.pairs_of_atoms[i][1]
        for i in range(n_sampled_crosslinks)],
    [2 for _ in range(n_sampled_crosslinks)],  # Bond type 2
)

# Set the crosslinker type to 2 (vulcanization)
for i in range(n_sampled_crosslinks):
    universe.set_vertex_property(
        sampled_crosslinks.pairs_of_atoms[i][0], "type", 2)
    universe.set_vertex_property(
        sampled_crosslinks.pairs_of_atoms[i][1], "type", 2)

print("Generated vulcanized network with {} crosslinks".format(n_sampled_crosslinks))

# if you want, you can collapse the crosslinks to be a single atom
# as such:
universe = universe.contract_vertices_along_bond_type(2)

# Save the universe to a file
writer = DataFileWriter(universe)

if not os.path.exists("generated_structures"):
    os.makedirs("generated_structures")

writer.write_to_file("generated_structures/vulcanized_network.data")

Generated vulcanized network with 7500 crosslinks

Refer to File I/O: Readers & Writers for more details on how you can save the universe to a file.

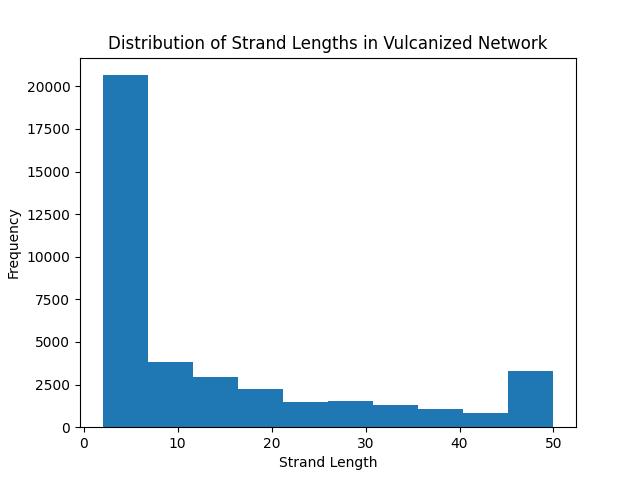

For now, we will show that this produces a variety of different strand lengths:

strand_lengths = [m.get_nr_of_atoms()
                  for m in universe.get_chains_with_crosslinker(2)]

# Plot the distribution of strand lengths
plt.figure()
plt.hist(strand_lengths, label="Strand Lengths")
plt.xlabel("Strand Length")
plt.ylabel("Frequency")
plt.title("Distribution of Strand Lengths in Vulcanized Network")
plt.show()
