Custom Crosslinking with Callback Functions

This example demonstrates how to use the link_strands_callback() method to create custom crosslinking procedures as an alternative to the built-in linking methods, link_strands_to_conversion() and link_strands_to_soluble_fraction(). The callback function allows users to control when the crosslinking process should stop based on any criteria they can implement.

The callback function receives two parameters: - The current MCUniverseGenerator instance - The current step number

And should return one of the BackTrackStatus values: - STOP: Stop the linking process - TRACK_FORWARD: Continue linking forward - TRACK_BACKWARD: Track backward in the linking process

import math

import matplotlib.pyplot as plt

from pylimer_tools.calc.miller_macosko_theory import predict_gelation_point
from pylimer_tools.io.bead_spring_parameter_provider import (
    ParameterType,
    get_parameters_for_polymer,
)
from pylimer_tools_cpp import BackTrackStatus, MCUniverseGenerator, MEHPForceBalance2

Example 1: Stop at Conversion OR Soluble Fraction

Using a callback allows for more complex logic, such as stopping the process based on multiple criteria as illustrated here.

# Get parameters for PDMS polymer density and bead distance
params = get_parameters_for_polymer(
    "PDMS", parameter_type=ParameterType.GAUSSIAN)

n_xlinks = 500  # Number of crosslinkers
n_strands = 1000  # Number of strands
strand_length = 50  # Length of each strand

n_atoms_total = n_strands * strand_length + n_xlinks
volume = n_atoms_total / params.get_bead_density()

generator = MCUniverseGenerator(
    volume ** (1 / 3),
    volume ** (1 / 3),
    volume ** (1 / 3),
)
generator.set_seed(42)

# Add crosslinkers and strands
generator.add_crosslinkers(n_xlinks, 4, 2)  # functionality 4
generator.add_strands(n_strands, [strand_length] * n_strands, 1)

target_conversion = 0.9  # Stop at 95% conversion
target_wsol = 0.2  # Stop if soluble fraction is below 20%

# record data throughout the process
conversions = []
wsol_values = []
steps = []


def conversion_callback(gen, steps_remaining):
    """
    Callback function to monitor crosslinking progress.
    This function checks the current crosslinker conversion and soluble fraction,
    and decides whether to stop the linking process.

    .. todo:
      Implement the search in a binary search fashion to improve efficiency
    """
    step = n_strands * 2 - steps_remaining
    assert isinstance(gen, MCUniverseGenerator), (
        "Callback must receive a MCUniverseGenerator instance"
    )
    current_conversion = gen.get_current_crosslinker_conversion()
    conversions.append(current_conversion)
    steps.append(step)

    if current_conversion >= predict_gelation_point(r=1, f=4, b2=1):
        prev_wsol = wsol_values[-1] if wsol_values else 1.0
        # Check if we need to run force balance
        if (step % 10 == 0) or (
            math.isclose(prev_wsol, target_wsol, rel_tol=1e-1, abs_tol=5e-2)
        ):
            fb2 = gen.get_force_balance2()
            assert isinstance(fb2, MEHPForceBalance2), (
                "Force balance must be MEHPForceBalance2"
            )
            fb2.run_force_relaxation()
            current_wsol = fb2.get_soluble_weight_fraction()
        else:
            current_wsol = prev_wsol
    else:
        # skip running force balance while
        # we don't even expect to have a network
        current_wsol = 1.0
    wsol_values.append(current_wsol)

    if current_conversion >= target_conversion or current_wsol <= target_wsol:
        print(
            "  Target conversion {:.1f} or soluble fraction {:.1f} reached at step {}.".format(
                target_conversion, target_wsol, step
            )
        )
        return BackTrackStatus.STOP
    else:
        return BackTrackStatus.TRACK_FORWARD


generator.link_strands_callback(conversion_callback, 1.0)

final_conversion = generator.get_current_crosslinker_conversion()
print(
    f"  Final conversion: {final_conversion:.3f} and w_sol: {wsol_values[-1]:.3f}")

Target conversion 0.9 or soluble fraction 0.2 reached at step 1473.
Final conversion: 0.736 and w_sol: 0.198

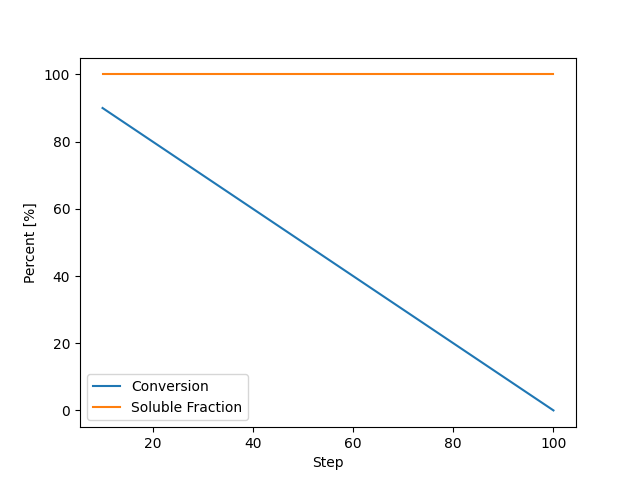

Visualizing the Results

Let’s plot the evolution of crosslinker conversion and soluble fraction over the steps.

fig, ax = plt.subplots()

ax.plot(steps, [c * 100 for c in conversions], label="Conversion")
ax.plot(steps, [wsol * 100 for wsol in wsol_values], label="Soluble Fraction")
ax.set_xlabel("Step")
ax.set_ylabel("Percent [%]")
ax.set(xlim=(0, max(steps)), ylim=(0, 100))
ax.legend()

plt.show()
